All Repairs PSA XS EVOLUTION interface !
Actia Psa Xs Evolution Driver Download
Peugeot & Citroen diagnostic tool, PSA XS EVOLUTION 2in1 by actia. Peugeot & Citroen diagnostic tool, PSA XS EVOLUTION 2in1 by actia.
Post: #1 |
| All Repairs PSA XS EVOLUTION interface ! Hi, Here is face down (LED side) of five microprocessor electronics boards of XS EVOLUTION interfaces. Two of them, in this case the two electronic boards to the left in the photo above, have communication problems on CAN bus, and particularly on FULL CAN vehicles. These two cards out: The three others, here, do not have this concern: When you look carefully at the two cards down, one perceives a missing component here: This is a 10Kohms resistor (marking 103); PULL UP resistor placed on the CAN line that comes the PIN P94 / TXO microprocessor MB90F546GS and then passes through the logic of HA08 before reaching the optocoupler HCPL 063N! So if you have CAN communication problems with your interfaces, you can already take a look to see if this resistance is present! Pending your back ... Regards. |
| Reputation: +7 - McMihai [+1] , carpi [+1] , HeXeN [+1] , mista [+1] , muko_82 [+1] , barto39 [+1] , galaxia [+1] |
The following 29 users say Thank You to titoun for this post:29 users say Thank You to titoun for this post • 530d, ALC1, autoaziz, barto39, bekiyu, benguessoum, bolecurug, bouizanne, BS68, carpi, diagdata, Dinho, djslowrnb, ETPerformance, fluorescent, gabivw, galaxia, HeXeN, kiko80, loki954, marianro2007, maxime47, McMihai, Michael1, Mind-Twist, mista, muko_82, Renopower, robalo |
04-02-2018, 04:24 AM, (This post was last modified: 04-02-2018, 13:09 PM by Michael1.) |
| All Repairs PSA XS EVOLUTION interface ! Hi Please help I have problem with Lexia interface, normallly it worked, during the reinstallation of DiagBox installed driver OK Led light normal but after that the interfacve is dead, I tried repleace USB cable, nothing, open iterface an measure conecting, cable and VGA conecor are good, interface have +5 V and grund through USB, D+ and D- from USB passing through small chip?? maybe that this is prblem ? here is 6 pin, there is small resistance (cca 20 ohm) measured betwen pin 1 - 6 and 3 -4 , that is maybe OK if it is noise filter? but i am not sure. Thanks in advance Best Regards Michael |
• |
Post: #3 |
| RE: All Repairs PSA XS EVOLUTION interface ! Hi, ESD suppressors : ref USBUF01W6 Marking code UU1 B.regards |
| Reputation: +1 - carpi [+1] |
The following 1 user says Thank You to titoun for this post:1 user says Thank You to titoun for this post • carpi |

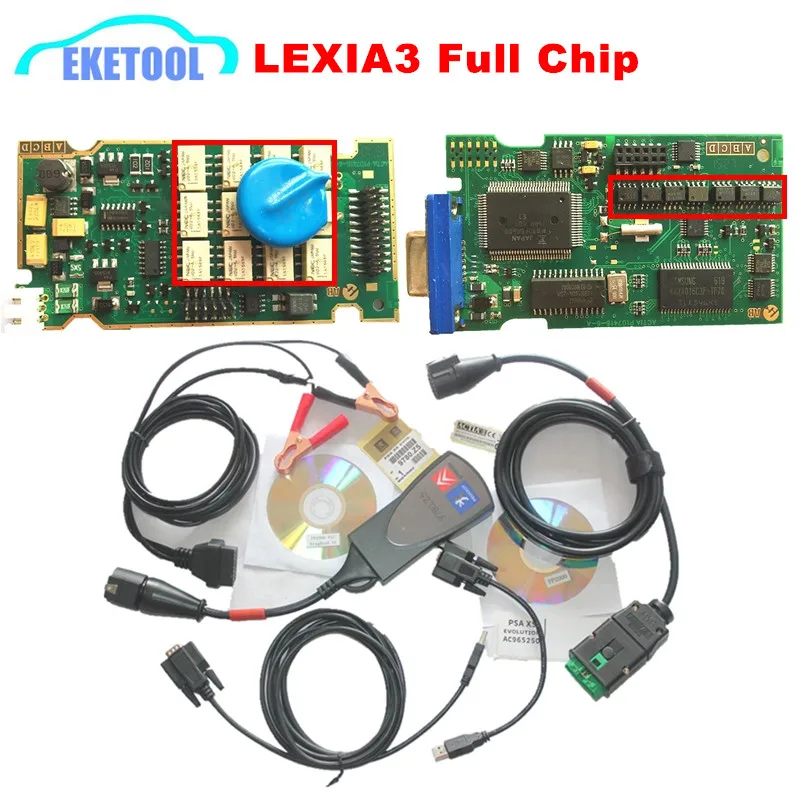

Psa Xs Evolution Driver
Post: #4 |
| RE: All Repairs PSA XS EVOLUTION interface ! Hi When I connect the interfacco to the USB laptop does not see it, LED notlight, have you any idea where is problem? Thanks in advance best regards Michael |
• |
Post: #5 |
| RE: All Repairs PSA XS EVOLUTION interface ! Maybe microprocessor MB90F546GS is bricked... ? try an hardware reflash of this! B.regards |
| Reputation: +1 - carpi [+1] |
The following 1 user says Thank You to titoun for this post:1 user says Thank You to titoun for this post • carpi |
Post: #6 |
| RE: All Repairs PSA XS EVOLUTION interface ! Good Morning, I have just been updating the firmware with Scary interface tool, during update cable got unplugged, and now the unit fails to respond. Green light is on but Scary's interface checker does not show anything. Is it possible to re-flash using another way? any help appreciated. Thank you. Best regards Andy |
• |
Post: #7 |
| RE: All Repairs PSA XS EVOLUTION interface ! I have same problem, how can i do hardware reflash? (18-02-2018, 16:48 PM)Michael1 Wrote: Hi |
• |
